Vortex86DX PC104 Board
IESP-6206 PC104 board with Vortex86DX processor and 256MB RAM is an industrial-grade computing platform that offers a reliable and cost-effective solution for data processing, control, and communication. This board is designed with high scalability and multifunctionality, making it widely used in various industrial applications.
One of the primary applications of IESP-6206 is in industrial automation for machine control, data acquisition. The onboard Vortex86DX processor ensures real-time control, enabling precise machine control and fast data acquisition. Additionally, it comes equipped with a PC104 Expansion Slot allowing additional I/O expansion, which makes it easy to integrate with other devices and peripherals.
Another popular application of this board is in transportation systems such as railways and subways, where it can be used for system monitoring and control. Its small form-factor design and low power consumption make it ideal for deployment in tight spaces under harsh conditions.
The board's robust features make it suitable for challenging environments such as those found in aerospace and defense industries, where it can help facilitate mission-critical task completion. Additionally, its low power consumption makes it perfect for deployment in remote locations with limited access to power grids.
Overall, the PC104 board with Vortex86DX processor and 256MB RAM is a cost-effective, reliable, and versatile computing platform that is well-suited for a variety of industrial applications. It is built to withstand harsh operating environments while delivering efficient and accurate data processing and control.

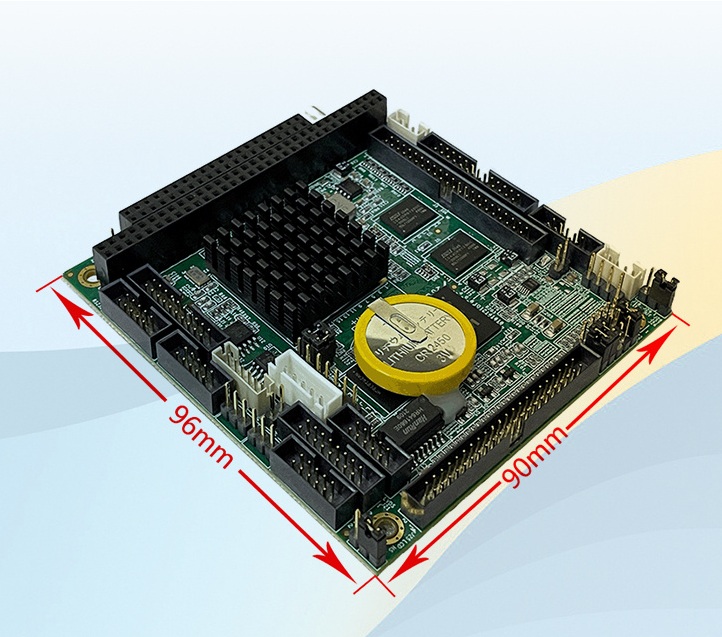

Dimension
| IESP-6206(LAN/4C/3U) | |
| Industrial PC104 Board | |
| SPECIFICATION | |
| CPU | Onboard Vortex86DX, 600MHz CPU |
| BIOS | AMI SPI BIOS |
| Memory | Onboard 256MB DDR2 Memory |
| Graphics | Volari Z9S (LVDS, VGA, TFT LCD) |
| Audio | HD Audio Decode Chip |
| Ethernet | 1 x 100/10 Mbps Ethernet |
| Disk A | Onboard 2MB Flash (With DOS6.22 OS) |
| OS | DOS6.22/7.1, WinCE5.0/6.0, Win98, Linux |
| On-board I/O | 2 x RS-232, 2 x RS-422/485 |
| 2 x USB2.0, 1 x USB1.1(Only in DOS ) | |
| 1 x 16-bit GPIO (PWM optional) | |
| 1 x DB15 CRT Display Interface, Resolution up to 1600×1200@60Hz | |
| 1 x Signal Channel LVDS (Resolution up to 1024*768) | |
| 1 x F-audio Connector (MIC-in, Line–out, Line-in) | |
| 1 x PS/2 MS, 1 x PS/2 KB | |
| 1 x LPT | |
| 1 x 100/10 Mbps Ethernet | |
| 1 x IDE for DOM | |
| 1 x Power Supply Connector | |
| PC104 | 1 x PC104 (16 bit ISA Bus) |
| Power Input | 5V DC IN |
| Temperature | Operating Temperature: -20°C to +60°C |
| Storage Temperature: -40°C to +80°C | |
| Humidity | 5% – 95% relative humidity, non-condensing |
| Dimensions | 96 x 90 MM |
| Thickness | Board Thickness: 1.6 mm |
| Certifications | CCC/FCC |
