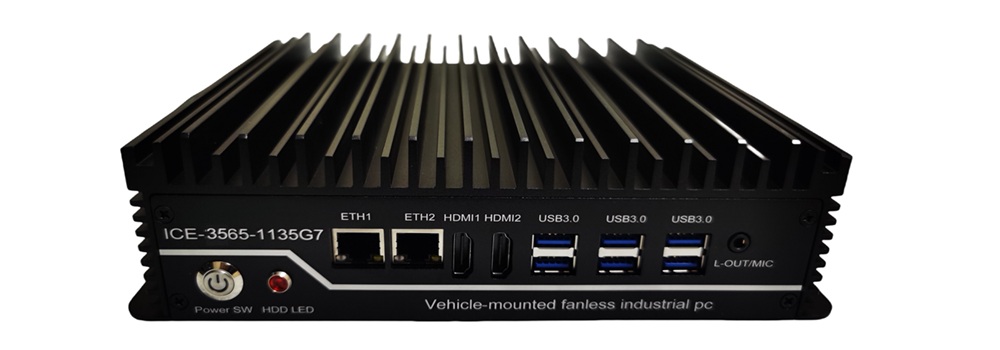

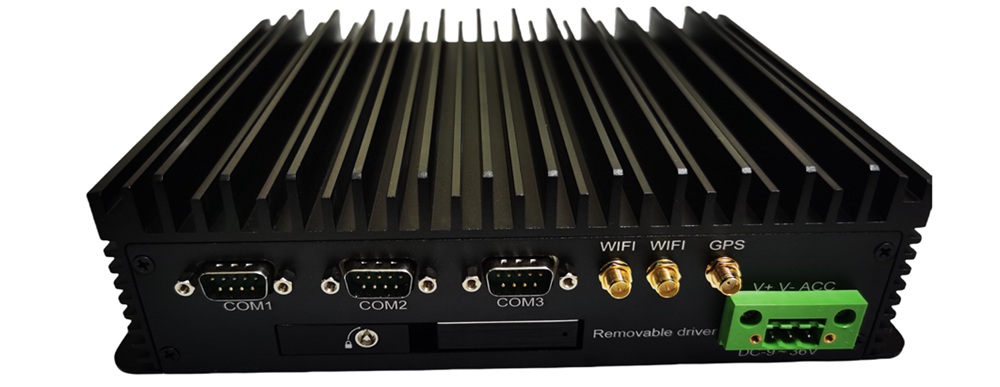

Vehicle Mounted Fanless Computer with 11th Core i3/i5/i7 processor

Vehicle Mounted Fanless Computer with 11th Core i3/i5/i7 processor

Key Features:

• Vehicle Mounted Fanless PC

• Onboard Core i5-1135G7 CPU, 4 Cores, 8M Cache, up to 4.20 GHz (15W)

• External I/Os: 2*HDMI, 6*USB3.0, 2*GLAN, 3/6*COM

• Storage: 1 * M.2 SSD, 1 x Removable 2.5″ Drive Bay

• With  WIFI Module & GPS Module

• Support 9~36V DC IN, Support ACC Ignition

• With 5-year Warranty


Overview

Specifications

Product Tags

A Vehicle-Mounted Fanless Box PC is a specialized computer designed for installation and use within various types of vehicles. It is engineered to endure the harsh conditions typically encountered in vehicles, such as extreme temperatures, vibrations, and confined spaces.

A key aspect of this Vehicle-Mounted Fanless Box PC is its fanless design, which eliminates the need for a cooling fan. Instead, it employs passive cooling techniques like heat sinks and metallic casings to dissipate heat, making it more resilient to dust, dirt, and other contaminants common in vehicular environments.

These PCs offer a diverse range of input/output interfaces, including USB ports for connecting peripherals, LAN ports for networking, and HDMI or VGA ports for connecting displays. They may also come with serial ports to accommodate specific devices or modules.

Vehicle-Mounted Fanless Box PCs are widely used in various transportation vehicles, including cars, trucks, buses, trains, and boats. They play crucial roles in fleet management, surveillance and security systems, GPS tracking, in-vehicle entertainment, and data collection.

In summary, a Vehicle-Mounted Fanless Box PC offers a dependable and durable computing solution for vehicle-based applications. With its robust construction and optimized performance, it ensures smooth operation and longevity even in the most challenging vehicular environments.

Customized Vehicle Computer

ICE-3565-1135G7
ICE-3565-1135G7 -F

  • Previous:
  • Next:

  • Customized Vehicle Mount Fanless BOX PC – With Intel 11th Gen. Core i3/i5/i7Processor
    ICE-3565-1135G7
    Vehicle Mount Fanless BOX PC
    SPECIFICATION
    Configuration Processors Onboard Core i5-1135G7 Processor, 4 Cores, 8M Cache, up to 4.20 GHz
    Option: Onboard Core™ i5-1115G4 CPU, 4 Cores, 8M Cache, up to 4.10 GHz
    BIOS AMI UEFI BIOS (Support Watchdog Timer)
    Graphics Intel Iris Xe Graphics / Intel® UHD Graphics
    RAM 2 * non-ECC DDR4 SO-DIMM Slot, Up to 64GB
    Storage 1 * M.2 (NGFF) Key-M Slot (PCIe x4 NVMe/ SATA SSD, 2242/2280)
    1 * Removable 2.5″ Drive Bay Optional
    Audio Line-Out + MIC 2in1 (Realtek ALC662 5.1 Channel HDA Codec)
    WIFI Intel 300MBPS WIFI Module (With M.2 (NGFF) Key-B Slot)

    Watchdog Watchdog Timer 0-255 sec., providing watchdog program

    External I/Os Power Interface 1 * 3PIN Phoenix Terminal For DC IN
    Power Button 1 * ATX Power Button
    USB Ports 6 * USB 3.0
    Ethernet 2 * Intel I211/I210 GBE LAN Chip (RJ45, 10/100/1000 Mbps)
    Serial Ports 4 * RS232 (6*COM optional)
    GPIO (optional) 1 * 8bit GPIO (optional)
    Display Ports 2 * HDMI  (TYPE-A, max resolution up to 4096×2160 @ 30 Hz)
    LEDs 1 * Hard disk status LED
    1 * Power status LED

    GPS(optional) GPS Module High sensitivity internal module
    Connect to COM4, with external antenna

    Power Supply Power Module Separate ITPS Power Module, Support ACC Ignition
    DC-IN 9~36V Wide Voltage DC-IN
    Delay Start 5 seconds in default (Set by software)
    Delay OS Shutdown 20 seconds in default (Set by software)
    ACC OFF Delay 0~1800 seconds (Set by software)
    Manual Shutdown By Switch, When ACC is under “ON” status

    Chassis Size W*D*H=175mm*214mm*62mm  (Customized Chassis)
    Color Matt Black (Other color optional)

    Environment Temperature Working Temperature: -20°C~70°C
    Storage Temperature: -30°C~80°C
    Humidity 5% – 90% Relative Humidity, non-condensing

    Others Warranty 5-Year (Free for 2-year, Cost price for last 3-year)
    Packing List Industrial Fanless BOX PC, Power Adapter, Power Cable
