High Performance Industrial Computer support Intel 9th Gen. Desktop processor
ICE-3392-9400T-2P4C5E fanless industrial BOX PC is a versatile and powerful computing solution. It supports a range of LGA1151 processors including Celeron, Pentium, Core i3, i5, and i7, providing flexibility to meet various performance requirements.
With support for up to 64GB of DDR4-2400MHz RAM across 2 SO-DIMM sockets, this BOX PC is capable of handling demanding tasks and applications with ease. The storage options include a 2.5" drive bay, 1 MSATA slot, and 1 M.2 Key-M socket, offering ample space for data storage and fast data access.
The rich I/O interface includes 6 COM ports, 10 USB ports, 5 Gigabit LAN ports, VGA, HDMI, and GPIO support, allowing for seamless connectivity with a wide range of devices and peripherals. The 2 expansion slots (PCIE x16 and PCIE x8) further enhance the system's capabilities, enabling additional functionality or performance upgrades as needed.
With a wide DC+9V~36V input range in AT/ATX mode, this BOX PC can be easily integrated into various industrial environments with stable power supply requirements. Additionally, the product comes with a 3/5-year warranty, providing peace of mind and long-term support for your computing needs.
Please contact us to get manual.
| High Performance Fanless Industrial Computer | ||
| ICE-3392-9100T-2P4C5E | ||
| – - support 6/7/8/9th Gen. Core i3/i5/i7 Desktop Processor | ||
| SPECIFICATION | ||
| Hardware Configuration | Processor | Suppoprt Intel Core i3-9100T / Core i5-9400T / Core i7-9700T processor |
| Support 6/7/8/9th Gen. LGA1151 Celeron/Pentium/Core i3/i5/i7 Processor | ||
| Chipset | Z370 | |
| Graphics | Intel® UHD Graphics | |
| RAM | 2 x SO-DIMM DDR4-2400MHz RAM Socket (Max. up to 64GB) | |
| Storage | 1 x 2.5″ SATA Driver Bay | |
| 1 x m-SATA Socket, 1 * M.2 Key-M Socket | ||
| Audio | 1 x Line-out & Mic-in (2in1) | |
| Expansion | 1 x PCIE3.0 x16 (x8 signal), 1 x PCIE3.0 x8 (x1 Signal optional) | |
| 1 x Mini-PCIe Socket For 4G Module | ||
| 1 x M.2 Key-E 2230 Socket for WIFI | ||
| 1 x M.2 Key-B 2242/52 For 5G Module | ||
| Watchdog | Timer | 0-255 sec., Programmable time to interrupt, to system reset |

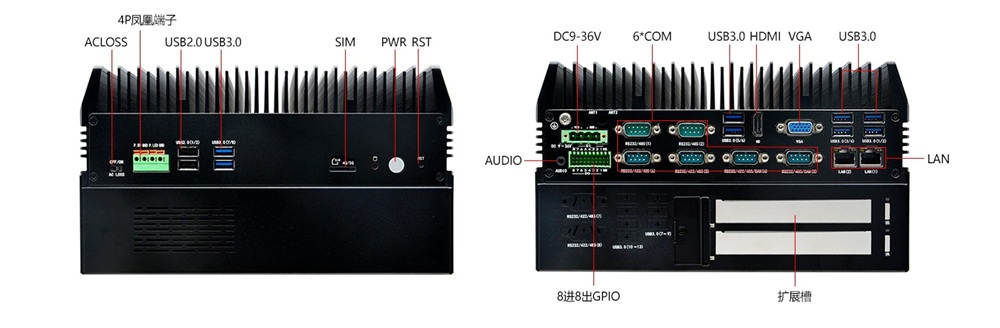

| Rear I/O | Power Connector | 1 x 4-PIN Phoenix Terminal For DC IN (9~36V DC IN) |
| USB | 6 x USB3.0 | |
| COM | 4 x RS-232 (COM3: RS232/485/CAN, COM4: RS232/422/485/CAN) | |
| LAN | 5 x Intel I210AT GLAN, support WOL, PXE (5 * I210AT GLAN optional) | |
| Audio | 1 x Audio Line-out & Mic-in | |
| Display Ports | 1 x VGA, 1 x HDMI1.4 | |
| GPIO | 2 x 8-PIN Phoenix Terminal For GPIO(Isolated , 7 x GPI, 7 x GPO) | |
| Front I/O | Phoenix Terminal | 1 x 4-PIN Phoenix Terminal, For Power-LED, Power Switch Signal |
| USB | 2 x USB3.0, 2 x USB2.0 | |
| LED | 1 x HDD LED | |
| SIM | 1 x SIM Slot | |
| Button | 1 x ATX Power Button, 1 x Reset Button | |
| Cooling | Active/Passive | 35W CPU TDP: Fanless Design (65W CPU TDP: with External Cooling Fan optional) |
| Power | Power Input | DC 9V-36V Input |
| Power Adapter | Huntkey AC-DC Power Adapter Optional | |
| Chassis | Material | Aluminum Alloy + Sheet Metal |
| Dimension | L229*W208*H125mm | |
| Color | Iron Gray | |
| Environment | Temperature | Working Temperature: -20°C~60°C |
| Storage Temperature: -40°C~70°C | ||
| Humidity | 5% – 90% Relative Humidity, non-condensing | |
| Others | Warranty | 3/5-Year |
| Packing List | Industrial Fanless BOX PC, Power Adapter, Power Cable | |
| Processor | Support Intel 6/7/8/9th Gen. Core i3/i5/i7 Desktop Processor | |
