High Performance Industrial Computer – 6/7/8/9th Gen. Core i3/i5/i7 Desktop CPU
ICE-3191-9400T-6C2L10U is a high-performance fanless industrial BOX PC designed for rugged and demanding environments. It supports 6th to 9th generation LGA1151 Celeron, Pentium, Core i3, i5, and i7 processors, ensuring powerful and efficient performance.
The high performance industrial computer is equipped with two SO-DIMM DDR4-2400MHz RAM sockets, allowing for a maximum capacity of up to 64GB of RAM. This ensures smooth multitasking and efficient data processing.
In terms of storage, ICE-3191-9400T-6C2L10U offers ample options with 2.5" drive bay, MSATA slot, and M.2 Key-M socket. This allows for flexible storage configurations to meet your specific needs.

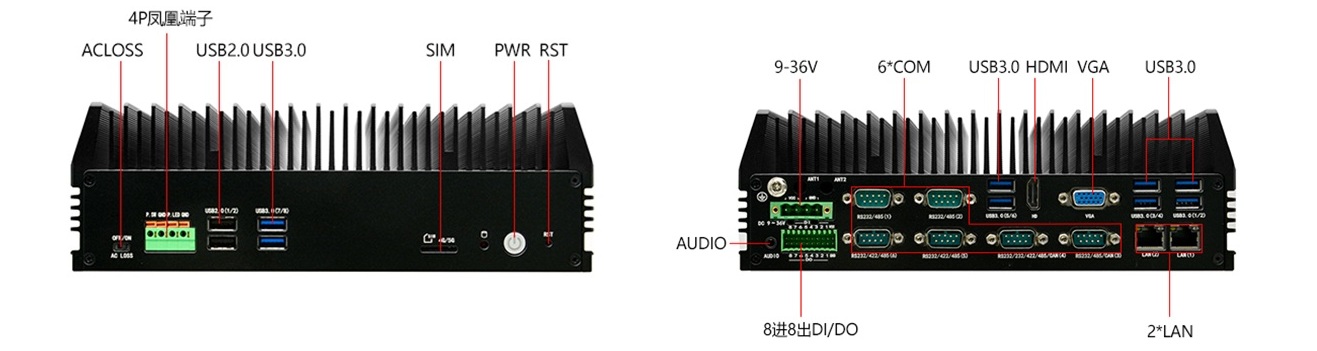

This high performance industrial computer comes with a rich selection of I/O ports, including 6*COM ports, 10*USB ports, 2*Gigabit LAN ports, 1*VGA, 1*HDMI, and 14-channel GPIO, providing extensive connectivity options for various peripherals and devices.
It supports DC+9V~36V input in both AT and ATX modes, ensuring compatibility with different power sources. This flexibility allows for easy integration into different systems.
The ICE-3391-9400T-6C2L10U comes with a 3 or 5-year warranty, providing peace of mind and assurance of its reliability and durability in demanding industrial environments.
Additionally, the product offers deep custom design services, allowing for tailored solutions to meet specific requirements and specifications.
Overall, ICE-3191-9400T-6C2L10U is a robust and versatile industrial BOX PC that combines high performance, expandable storage, rich I/O options, and flexible power supply support, making it an ideal choice for industrial applications.
| High Performance Industrial Computer with 8/9th Gen. Core i3/i5/i7 Desktop Processor | ||
| ICE-3191-9400T-6C2L10U | ||
| High Performance Industrial Computer | ||
| SPECIFICATION | ||
| Hardware Configuration | Processor | Intel® Core™ i5-9400T Processor 9M Cache, up to 3.40 GHz (TDP:35W) |
| Support 6/7/8/9th Gen. LGA1151 Celeron/Pentium/Core i3/i5/i7 Processor | ||
| BIOS | AMI BIOS | |
| Graphics | Intel® UHD Graphics | |
| Memory | 2 * SO-DIMM DDR4-2400MHz RAM Socket (Max. up to 64GB) | |
| Storage | 1 * 2.5″ SATA Driver Bay | |
| 1 * m-SATA Socket, 1 * M.2 Key-M Socket | ||
| Audio | 1 * Line-out & Mic-in (2in1) | |
| 1 * Mini-PCIe Socket (Support 4G Module) | ||
| 1 * M.2 Key-E 2230 Socket for WIFI | ||
| 1 * M.2 Key-B 2242/52 For 5G Module | ||
| Rear I/O | Power Connector | 1 * 4-PIN Phoenix Terminal For DC IN (9~36V DC IN) |
| USB | 6 * USB3.0 | |
| COM | 6 * RS-232 (COM3: RS232/485/CAN, COM4: RS232/422/485/CAN) | |
| LAN | 2 * Intel I210AT GLAN, support WOL, PXE (5*I210AT GLAN optional) | |
| Audio | 1 * Audio Line-out & Mic-in | |
| Display Ports | 1 * VGA, 1 * HDMI1.4 | |
| GPIO | 2 * 8-PIN Phoenix Terminal For GPIO(Isolated , 7*GPI, 7*GPO) | |
| Front I/O | Phoenix Terminal | 1 * 4-PIN Phoenix Terminal, For Power-LED, Power Switch Signal |
| USB | 2 * USB3.0, 2 * USB2.0 | |
| LED | 1 * HDD LED | |
| SIM | 1 * SIM Slot | |
| Button | 1 * ATX Power Button, 1 * Reset Button | |
| Cooling | Active/Passive | 65W CPU TDP: with External Cooling Fan, 35W CPU TDP: Fanless Design |
| Power | Power Input | DC 9V-36V Input |
| Power Adapter | Huntkey AC-DC Power Adapter Optional | |
| Chassis | Material | Aluminum Alloy + Sheet Metal |
| Dimension | L229*W208*H67.7mm | |
| Color | Iron Gray | |
| Environment | Temperature | Working Temperature: -20°C~60°C |
| Storage Temperature: -40°C~70°C | ||
| Humidity | 5% – 90% Relative Humidity, non-condensing | |
| Others | Warranty | 3/5-Year |
| Packing List | Industrial Fanless BOX PC, Power Adapter, Power Cable | |
| Processor | Support Intel 6/7/8/9th Gen. Core i3/i5/i7 U Series Processor | |
