High Performance Fanless BOX PC – 6/7th Generation CPU/12USB/6COM/5GLAN
The ICE-3441-12U2C5L is an excellent high-performance fanless BOX PC. It is powered by a powerful 4th generation Core i3/i5/i7 processor, ensuring efficient and seamless operation.
With its five Gigabit Ethernet ports, this BOX PC provides exceptional connectivity options for industries such as industrial automation, intelligent transportation systems, and network security. It allows for reliable and fast data transfer between multiple devices.
The twelve USB ports, including two USB 3.0 ports, offer extensive connectivity options, making it suitable for applications in medical equipment, multimedia/advertising, and visual inspection, where the transfer of large amounts of data is crucial.
The dual display ports, featuring HDMI and VGA connections, allow for the use of multiple displays simultaneously. This makes it perfect for applications in video surveillance and multimedia.
The ICE-3441-12U2C5L is widely used across various industries, including industrial automation, intelligent transportation systems, medical equipment, multimedia/advertising, parking lots, video surveillance, network security, and visual inspection. Its high-performance specifications and versatile connectivity options make it an ideal choice for demanding environments in these industries.
| High Performance Fanless BOX PC – 12USB & 6COM & 5GLAN | ||
| ICE-3461-12U2C5L | ||
| High Performance & Multi-LAN Fanless BOX PC | ||
| SPECIFICATION | ||
| Hardware Configuration | Processor | Intel 6/7th Generation Core™ i3/i5/i7 Processors (TDP: 35W) |
| BIOS | AMI UEFI BIOS | |
| Chipset | Intel H110 | |
| Graphics | Intel® HD Graphics | |
| DRAM | 1 * DDR4 UDIMM Socket, up to 16GB | |
| Storage | 1 * m-SATA Slot, 1 * 2.5″ Driver Bay | |
| Audio | 1 * Line-in, 1 * Line-out, 1 * Mic-in (Realtek ALC662 HD Audio) | |
| Expansion | 1 * Full Size Mini-PCIe, support WIFI or m-SATA | |
| Watchdog | Timer | 255 levels, Programmable Timer, For System Reset |

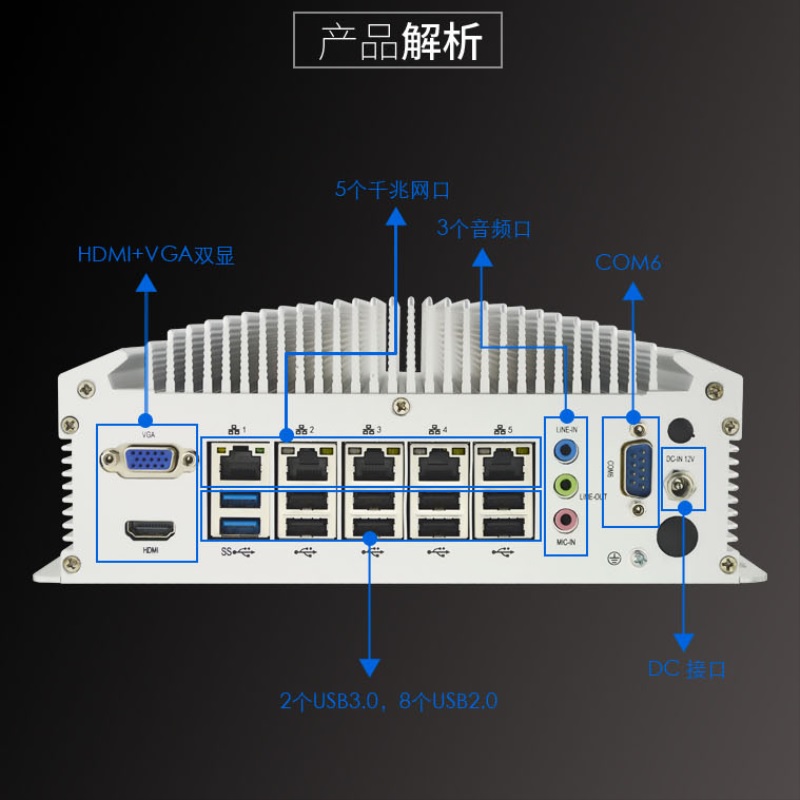

| External I/O | Power Input | 1 * DC Power Input |
| Buttons | 1 * ATX Power Button | |
| USB Ports | 4 * USB3.0, 8 * USB2.0 | |
| LAN | 5 * Intel I211 RJ45 GLAN (10/100/1000 Mbps Ethernet Controller) | |
| Display Ports | 1 * VGA, 1 * HDMI | |

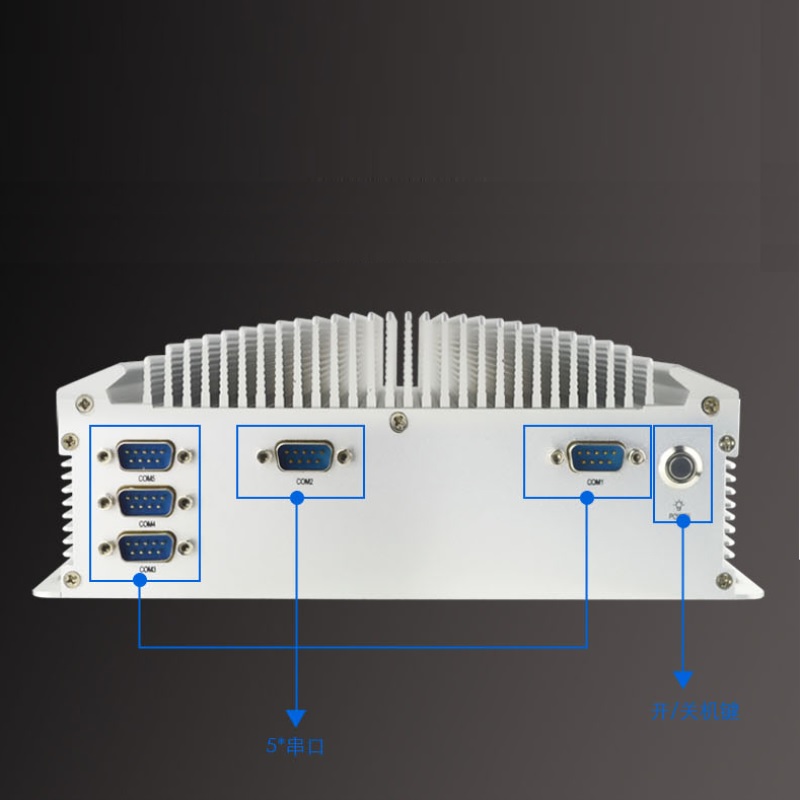

| Serial Ports | 2 * COM (6*COM optional) | |
| Power | Power Input | Support 12V DC IN (12V @ 10A Power Adapter) |
| Physical Characteristics | Dimensions | 234.7(W) * 207(D) * 77.7(H) mm |
| Color | Sliver (Gray/Black optional) | |
| Mounting | Stand/ Wall | |
| Environment | Temperature | Working Temperature: -20°C~60°C |
| Storage Temperature: -40°C~80°C | ||
| Humidity | 5% – 95% Relative Humidity, non-condensing | |
| Others | Processor | Support Intel 6/7th Gen. Core i3/i5/i7 Processor (TDP: 35W) |
| Warranty | Under 3-Year Warranty | |
| Packing List | Industrial Fanless BOX PC, Power Adapter, Power Cable | |
| OEM/ODM | Provide Deep Custom Design Services | |
