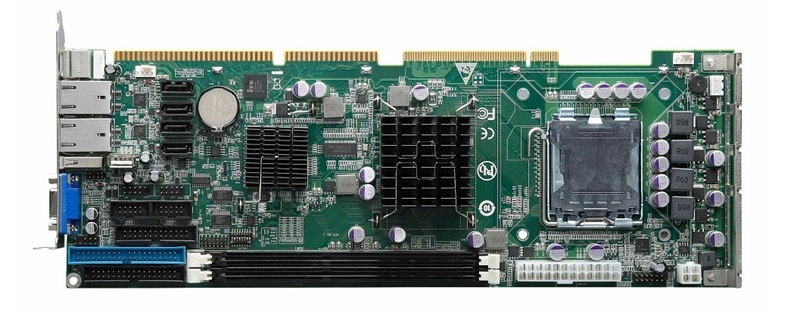

G41 Chipset Full Size CPU Card
IESP-6541, PICMG1.0 Full Size CPU Card, supporting LGA775 Intel Core 2 Quad/Core 2 Duo processors with an Intel 82G41(GMCH)+Intel 82801GB(ICH7) chipset, has various applications in industrial-grade computer systems.
With two 240-pin DDR3 slots that support up to 8GB of memory and storage options that include four SATA ports, one IDE port, and one floppy drive disk (FDD) connector, this card provides a reliable solution for data-intensive computing tasks. The two COM ports on the board allow easy communication with serial devices such as printers and barcode scanners.
IESP-6541 offers rich connectivity options with its multiple I/Os, including two RJ45 ports for network connectivity, VGA display output, HD audio, six USB ports, LPT, and PS/2. It also features a programmable watchdog with 256 levels to ensure system stability, and supports both AT and ATX power supplies.
| IESP-6541(2GLAN/2C/6U) | |
| Industrial Full Size CPU Card | |
|
DATASHEET |
|
|
CPU |
Support LGA775, Intel Core 2 Quad / Core 2 Duo Processor |
|
BIOS |
AMI BIOS |
|
Chipset |
Intel 82G41(GMCH)+Intel 82801GB(ICH7) |
|
RAM |
Support 2 x 240-pin DDR3 Slots (MAX. UP TO 8GB) |
|
Graphics |
Intel HD Graphic, Display Output: VGA |
|
Audio |
HD Audio (With 1*Line_Out, 1*Line_In, 1*MIC-In) |
|
LAN |
2 x RJ45 Ethernet |
|
Watchdog |
256 levels, programmable timer to interrupt & system reset |
|
|
|
|
External I/O |
1 x VGA Display Output |
| 2 x RJ45 GLAN | |
| 1 x PS/2 for MS & KB | |
| 1 x USB2.0 | |
|
|
|
|
On-board I/O |
2 x RS232 (1 x RS232/422/485) |
| 5 x USB2.0 | |
| 4 x SATA II | |
| 1 x LPT | |
| 1 x IDE | |
| 1 x FDD | |
| 1 x Audio | |
| 1 x 8-bit DIO | |
|
|
|
|
Expansion |
PICMG1.0 |
|
|
|
|
Power Input |
AT/ATX |
|
|
|
|
Working Environment |
TEMP.:-10°C to +60°C |
| Humidity: 5% – 95% relative humidity, non-condensing | |
|
|
|
|
Humidity |
5% – 95% relative humidity, non-condensing |
|
|
|
|
Sise(L*W) |
338mm x 122mm |
