High Performance Machine Vision Industrial Computer – 10*GLAN & 1*PCI
The IESP-3318-H110 is a robust industrial compact computer designed to meet the high-performance computing needs of various industrial applications. This device features an Intel desktop processor and 10*RJ45 GLAN that enable fast data transfer and smooth connectivity across different devices.
Further, this compact computer comes with 2*COM port, DVI, HDMI, and a PCI expansion slot for additional peripheral integration and compatibility. It also has a 12~24V DC IN power supply input, allowing it to work efficiently in various environments with varying voltage requirements.
Moreover, the IESP-3318-H110 is built with a sturdy and reliable housing that complies with rigorous industrial standards. Its small form factor makes it easy to place in confined spaces without sacrificing performance, while its metal casing provides protection against harsh environments.
Overall, this industrial compact computer is well-suited for demanding industrial applications that require high computing power and reliable connectivity. Its advanced specifications, multiple communication interfaces, and flexible installation options make it a versatile solution for a wide range of industrial environments.

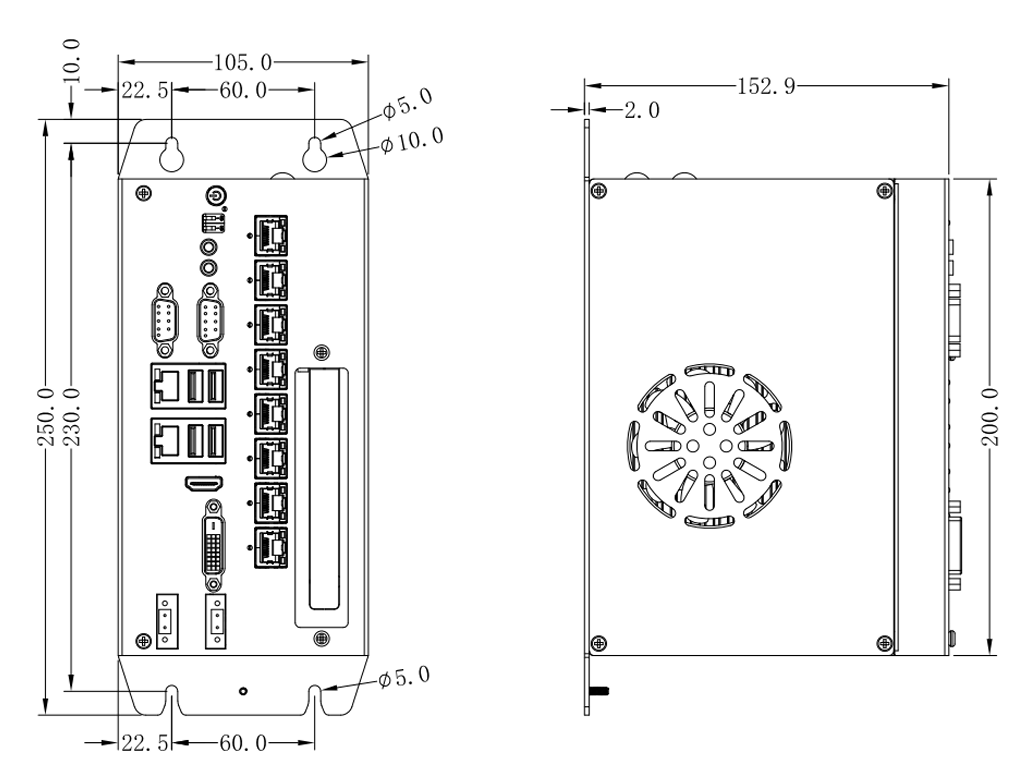

Dimension
| IESP-3318-H110 | ||
| Compact Industrial Computer | ||
| SPECIFICATION | ||
| Hardware Configuration | Processor | LGA1151 CPU Socket, Intel 6/7/8/9th Core i3/i5/i7 Processor (TDP< 65W ) |
| Chipset | Intel H110 (Intel Q170 optional) | |
| Graphics | Integrated HD Graphic, DVI & HDMI Display Output | |
| RAM | 2 * 260Pin DDR4 SO-DIMM, 1866/2133/2666MHz DDR4, up to 32GB | |
| Storage | 1 * mSATA | |
| 1 * 7Pin SATA III | ||
| Audio | Realtek HD Audio, Support Line_Out / MIC | |
| Mini-PCIe | 1 * Full Size Mini-PCIe 1x Socket, support 3G/4G Communication Module | |
| Hardware Monitoring | Watchdog | 1 * Internal USB2.0 For Hardware Watchdog |
| Temp. Detect | Support CPU/Motherboard/HDD temp. detect | |
| External I/O | Power Interface | 1 * 2PIN Phoenix Terminal DC In, 1 * 2PIN Phoenix Terminal DC Out |
| Power Button | 1 * Power Button | |
| USB3.0 | 4 * USB 3.0 | |
| LAN | 10 * Intel 10/100/1000Mbs Ethernet (WGI 211-AT), 8*GLAN Support PXE & WOL & POE | |
| Serial Port | 2 * COM | |
| Display Ports | 1 * DVI & 1 * HDMI support 4K (Support Dual-Display) | |
| Expansion | PCIEX8/PCI | 1 * PCIE X8 or 1 * PCI |
| Power | Power Type | DC 12~24V Input (AT/ATX mode via jumper selection) |
| Physical Characteristics | Dimension | W105 x H150.9 x D200mm |
| Color | Black | |
| Enviroment | Temperature | Working Temperature: -20°C~60°C |
| Storage Temperature: -40°C~80°C | ||
| Humidity | 5% – 90% Relative Humidity, non-condensing | |
| Others | Warranty | 5-Year (Free for 2-year, Cost price for last 3-year) |
| Packing List | Compact Industrial Computer, Power Adapter, Power Cable | |
| Processor | Support Intel 6/7/8/9th Core i3/i5/i7 CPU | |
