945GC Chipset Full Size CPU Card

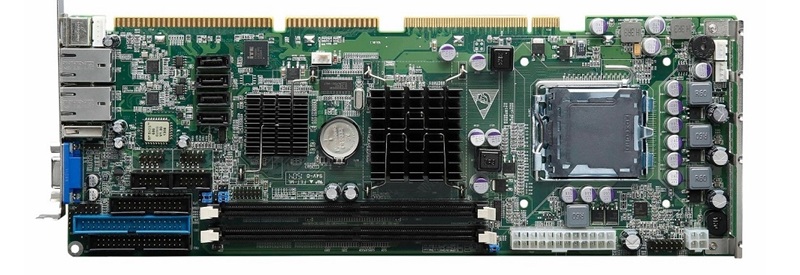

IESP-6535 PICMG1.0 Full Size CPU Card, supporting LGA775 Intel Core 2 Duo processors with an Intel 945GC+ICH7 chipset, has various applications in industrial-grade computer systems.
With two 240-pin DDR3 slots that support up to 8GB of memory and storage options that include four SATA ports, one IDE port, and one floppy drive disk (FDD) connector.
The product offers rich connectivity options with its multiple I/Os, including two RJ45 ports for network connectivity, VGA display output, HD audio, six USB ports, LPT, and PS/2. It also features a programmable watchdog with 256 levels to ensure system stability, and supports both AT and ATX power supplies.
| IESP-6535(2GLAN/2C/6U) | |
| Industrial Full Size CPU Card | |
|
SPCIFICATION |
|
|
CPU |
Support LGA775 Core 2 Duo,Pentium 4/D,Celeron D 533/800/1066Mhz Processor |
|
BIOS |
AMI BIOS |
|
Chipset |
Intel 945GC+ICH7 |
|
Memory |
2 x 240-pin DDR3 Slots (MAX. UP TO 8GB) |
|
Graphics |
Intel GMAX4500, Display Output: VGA |
|
Audio |
HD Audio (Line_Out/Line_In/MIC-In) |
|
Ethernet |
2 x 10/100/1000 Mbps Ethernet |
|
Watchdog |
256 levels, programmable timer to interrupt & system reset |
|
|
|
|
External I/O |
1 x VGA |
| 2 x RJ45 GLAN | |
| 1 x PS/2 for MS & KB | |
| 1 x USB2.0 | |
|
|
|
|
On-board I/O |
2 x RS232 (1 x RS232/485) |
| 5 x USB2.0 | |
| 4 x SATA II | |
| 1 x LPT | |
| 1 x IDE | |
| 1 x FDD | |
| 1 x Audio | |
| 1 x 8-bit DIO | |
|
|
|
|
Expansion |
PICMG1.0 |
|
|
|
|
Power Input |
AT/ATX |
|
|
|
|
Temperature |
Operating Temperature: -10°C to +60°C |
| Storage Temperature: -40°C to +80°C | |
|
|
|
|
Humidity |
5% – 95% relative humidity, non-condensing |
|
|
|
|
Dimensions |
338mm (L)x 122mm (W) |
|
|
|
|
Thickness |
Board Thickness: 1.6 mm |
|
|
|
|
Certifications |
CCC/FCC |
