Industrial Embedded SBC – Intel 8/10th Gen. Core i3/i5/i7 CPU

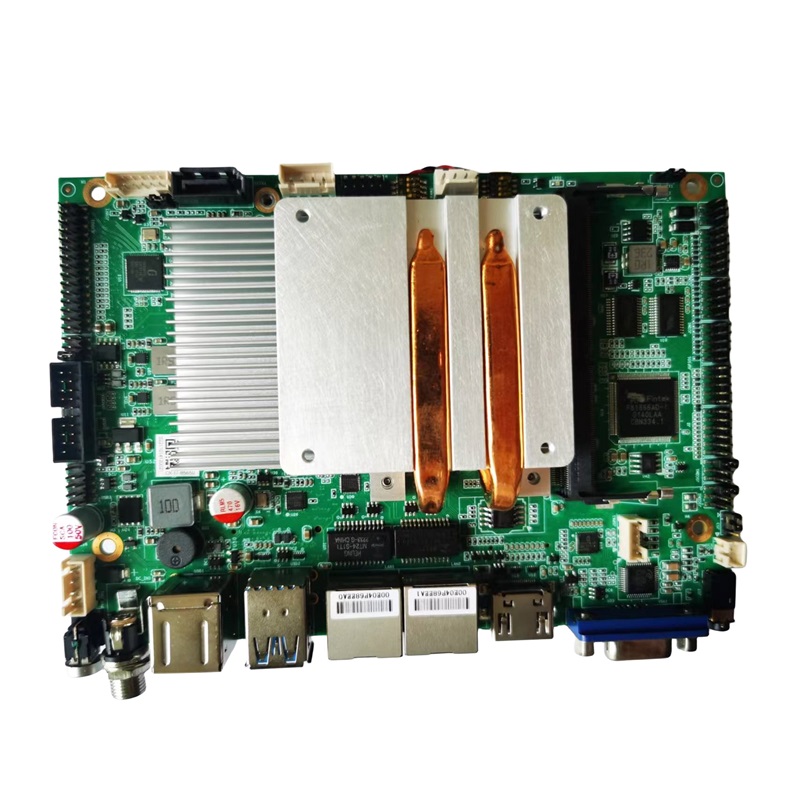

The IESP-6382-XXXXU industrial embedded motherboard is a versatile and robust solution designed to meet the demanding requirements of industrial automation and IoT applications. Here's a breakdown of its features:
1. Processor Support: Onboard Intel 8th/10th Gen Core i3/i5/i7 mobile processor support ensures reliable performance and compatibility with a range of processing needs.
2. Memory: Support for DDR4 memory modules running at speeds of 1866/2133/2400 MHz, with a maximum capacity of up to 64GB, enables efficient multitasking and data processing.
3.External I/Os: The motherboard features a comprehensive set of external I/O ports including 4 USB ports for peripheral connectivity, 2 RJ45 Gigabit LAN ports for high-speed networking, 1 HDMI port for display output, and 1 audio port for audio input/output.
4. Onboard I/Os: Additionally, it provides 6 COM ports for serial communication, 4 USB ports for additional peripheral connections, 1 LVDS/eDP port for display connectivity, and GPIO (General Purpose Input/Output) pins for interfacing with external devices.
5. Expansion Slots: The motherboard offers expansion flexibility with 1 MINI PCIE slot, 1 MSATA slot, and 1 M.2 slot, allowing for the integration of additional functionality or storage options as needed.
6. Power Input: Designed to operate in industrial environments, it supports a wide input voltage range of 12~36V DC, ensuring stable and reliable power supply compatibility across various applications.
7. Compact Size: With dimensions of 160mm x 110mm, the motherboard offers a compact form factor, making it suitable for space-constrained industrial installations.
8. Durability: Built to withstand harsh operating conditions, the motherboard is engineered for durability and reliability in industrial settings.
Overall, the IESP-6382-XXXXU industrial embedded motherboard provides a comprehensive set of features, robust performance, and expansion options, making it an ideal solution for a wide range of industrial automation and IoT applications.
| IESP-6382-8565U | |
| Industrial Embedded SBC | |
| Specification | |
| CPU | Onboard Intel 8th Gen. Core i7-8565U Processor, 4 Cores, 8M Cache |
| CPU Options: Intel 8/10th Gen. Core i3/i5/i7 Mobile Processor | |
| BIOS | AMI BIOS |
| Memory | 2 * SO-DIMM Slot, Support DDR4-2400, Up to 64GB |
| Graphics | Intel® UHD Graphics |
| Audio | USB HS-100B Audio Chip |
| External I/O | 1 x HDMI, 1 x VGA |
| 2 x Realtek RTL8111H Ethernet Port (RJ45, 10/100/1000 Mbps) | |
| 2 x USB3.0, 2 x USB2.0 | |
| 1 x Audio Line-out | |
| 1 x DC-IN (12~36V DC IN) | |
| 1 x Power-on Button | |
| On-board I/O | 6 x RS-232 (1 x RS-232/422/485) |
| 2 x USB2.0, 2 x USB3.0 | |
| 1 x 8-bit GPIO | |
| 1 x LVDS Connector (eDP optional) | |
| 1 x 2-PIN Mic-in Connector | |
| 1 x 4-PIN Speaker Connector | |
| 1 x SATA3.0 Connector | |
| 1 x 4-PIN Power Supply Connector for SATA HDD | |
| 1 x 4-PIN CPU Fan Connector | |
| 1 x 10-PIN Header (PWR LED, HDD LED, SW, RST, BL UP & DOWN) | |
| 2 x SIM Slot | |
| 1 x 4-PIN DC-IN Connector | |
| Expansion | 1 x MSATA Connector |
| 1 x Mini-PCIE Connector | |
| 1 x M.2 2280 Connector | |
| Power Input | 12~36V DC IN |
| Temperature | Operating Temperature: -10°C to +60°C |
| Storage Temperature: -20°C to +80°C | |
| Humidity | 5% – 95% relative humidity, non-condensing |
| Dimensions | 160 x 110 MM |
| Warranty | 2-Year |
| CPU Options | IESP-6382-8145U: Intel® Core™ i3-8145U Processor, 2 Cores, 4M Cache, up to 3.90 GHz |
| IESP-6382-8265U: Intel® Core™ i5-8265U Processor, 4 Cores, 6M Cache, up to 3.90 GHz | |
| IESP-6382-8565U: Intel® Core™ i7-8565U Processor, 4 Cores 8M Cache, up to 4.60 GHz | |
| IESP-63102-10110U: Intel® Core™ i3-10110U Processor, 2 Cores, 4M Cache, up to 4.10 GHz | |
| IESP-63102-10210U: Intel® Core™ i5-10210U Processor, 4 Cores, 6M Cache, up to 4.20 GHz | |
| IESP-63102-10610U: Intel® Core™ i7-10610U Processor, 4 Cores 8M Cache, up to 4.90 GHz | |
