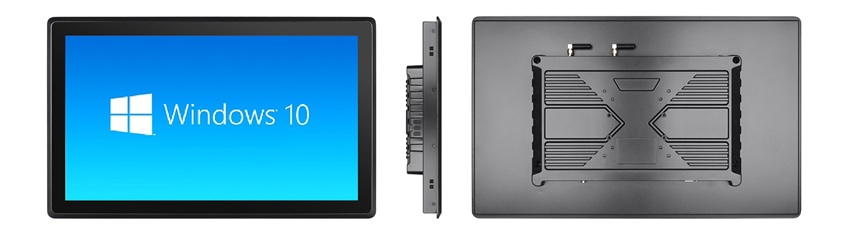

21.5″ Fanless Touch Panel PC – With 6/8/10th Core I3/I5/I7 U Series Processor
IESP-5621-W Standalone Industrial Panel PC is a reliable and high-performing solution that offers a truly flat, easy-to-clean front surface with an edge-to-edge design. With an IP65 rating, it provides excellent protection against water and dust, making it ideal for use in harsh environments.
This standalone industrial panel PC is designed to deliver optimal performance in various industrial applications, such as manufacturing, automation, and control systems. It features a range of advanced features, including a high-resolution display, touch screen capabilities, and a powerful processor, all of which work together to ensure seamless operation.
IESP-5621-W Standalone Industrial Panel PC is built to last, with a rugged and durable construction that can withstand the rigors of daily use. It is also easy to install and maintain, making it a cost-effective solution for industrial applications.
Additionally, this panel PC comes in a variety of sizes and configurations to meet the unique needs of your application. It also supports various mounting options, including VESA and panel mount, giving you the flexibility to install it in a way that best suits your needs. With its edge-to-edge design, easy-to-clean front surface, and IP65 protection, it offers superior functionality and durability. Contact us to learn more about this outstanding product.
Ordering Information
IESP-5621-J1900-C-W: J1900 2M Cache, up to 2.42 GHz
IESP-5621-6100U-C-W: 6th Gen. Core i3-6100U Processor 3M Cache, 2.30 GHz
IESP-5621-6200U-C-W: 6th Gen. Core i5-6200U Processor 3M Cache, up to 2.80 GHz
IESP-5621-6500U-C-W: 6th Gen. Core i7-6500U Processor 4M Cache, up to 3.10 GHz
IESP-5621-8145U-C-W: 8th Gen. Core i3-8145U Processor 4M Cache, up to 3.90 GHz
IESP-5621-8265U-C-W: 8th Gen. Core i5-8265U Processor 6M Cache, up to 3.90 GHz
IESP-5421-8565U-C-W: 8th Gen. Core i7-8565U Processor 8M Cache, up to 4.60 GHz
IESP-5621-10110U-C-W: 10th Gen. Core i3-8145U Processor 4M Cache, up to 4.10 GHz
IESP-5621-10210U-C-W: 10th Gen. Core i5-10210U Processor 6M Cache, up to 4.20 GHz
IESP-5621-10510U-C-W: 10th Gen. Core i7-10510U Processor 8M Cache, up to 4.90 GHz
| IESP-5621-10210U-W | ||
| 21.5-inch Industrial Fanless Panel PC | ||
| SPECIFICATION | ||
| Hardware Configuration | Processor | Onboard Intel 10th Core i5-10210U Processor 6M Cache, up to 4.20GHz |
| Processor Options | Support Intel 6/8/10th Generation Core i3/i5/i7 U-series Processor | |
| Integrated Graphics | Intel HD Graphic 620 | |
| Memory | Support 4/8/16/32GB DDR4 RAM | |
| Audio | With Realtek HD Audio | |
| Storage | Support 128GB/256GB/512GB M.2 SSD | |
| WLAN | WiFi & BT Optional | |
| WWAN | 3G/4G Module Optional | |
| Operating System | Windows10/Windows11 OS; Ubuntu18.04.5/20.04.3 OS | |
| Display | LCD Size | 21.5″ TFT LCD |
| Resolution | 1920*1080 | |
| Viewing Angle | 89/89/89/89 (L/R/U/D) | |
| Number of Colors | 16.7M Colors | |
| Brightness | 300 cd/m2 (High Brightness Optional) | |
| Contrast Ratio | 1000:1 | |
| Touchscreen | Touchscreen Type | Projected Capacitive Touchscreen (Resistive Touchscreen Optional) |
| Light Transmission | Over 90% (P-Cap) | |
| Controller | With USB Communication Interface | |
| Life Time | ≥ 50 million times | |
| External Interface | Power In 1&2 | 1*12PIN Phoenix Terminal Block DC-IN, 1*DC2.5 DC-IN |
| Power Button | 1*Power button | |
| USB Ports | 4*USB (2*USB3.0, 2*USB2.0) | |
| Display Ports | 1*HDMI ( support 4k) , 1*VGA | |
| SMI Card | 1*Standard SIM Card Slot (For 3G/4G Communication) | |
| LAN | 2*LAN, Dual 1000M adaptive Ethernet | |
| HD Audio | 1*HD Audio Line-Out, 3.5mm standard interface | |
| COM(RS232) | 2*RS232 (Max up to 6*COM, RS485 optional) | |
| Power | Input Voltage | 12V~36V DC IN Supported |
| Physical Characteristics | Front Bezel | Pure Flat and IP65 Protected |
| Material | Aluminum Alloy Material | |
| Mounting Ways | Panel Mount, VESA Mount (Customzed Mounting Solutions optional) | |
| Color | Black (Provide custom design services) | |
| Product Size | W537.4x H328.8x D64.5 (mm) | |
| Opening Size | W522.2 x H313.6 (mm) | |
| Environment | Temperature | -10°C~60°C Working Temp. |
| Humidity | 5% – 90% relative humidity, non-condensing | |
| Stability | Vibration protection | IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Impact protection | IEC 60068-2-27, half sine wave, duration 11ms | |
| Authentication | CCC/CE/FCC/EMC/CB/ROHS | |
| Others | Warranty | 3 Years (Free for 1-year, Cost price for last 2-year) |
| Speaker | 2*3W Speaker optional | |
| OEM | Optional | |
| Packing List | Industrial Panel PC, Mounting Kits, Power Adapter, Power Cable | |
| IESP-56XX Fanless Panel PC Customization Options | |||||||
| Mounting | Panel Mount / VESA Mount / Customized Mount | ||||||
| Display LCD | Size / Brightness / Viewing Angle / Contrast Ratio / Resolution | ||||||
| Touch Screen | Resistive Touchscreen / P-cap Touchscren / Protective Glass | ||||||
| CPU Options | 6th/8th/10th Generation Core i3/i5/i7 Processor | ||||||
| Memory | 4GB / 8GB / 16GB / 32GB DDR4 RAM | ||||||
| Storages | mSATA SSD / M.2 NVME SSD | ||||||
| COM Ports | Max up to 6*COM | ||||||
| USB Ports | Max up to 4*USB2.0, Max up to 4*USB3.0 | ||||||
| GPIO | 8*GPIO (4*DI, 4*DO) | ||||||
| LOGO | Customized Boot-up LOGO | ||||||
