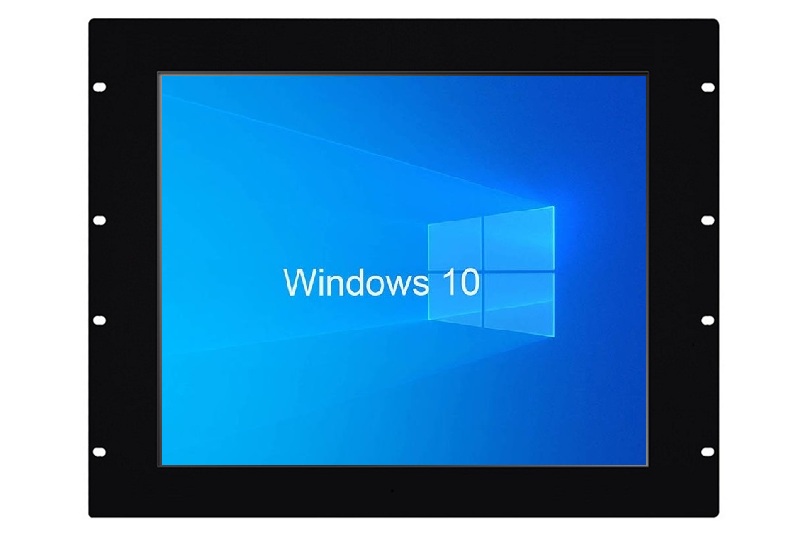

19″ LCD Customizable 9U Rack Mount Industrial Panel PC
The IESP-5219-XXXXU customized 9U rack mount industrial panel PC is a high-performance computer designed for use in industrial settings. It has an onboard Core i3/i5/i7 processor, which provides powerful processing capabilities to handle complex tasks and applications.
The 19" 1280*1024 industrial grade TFT LCD display provides clear and detailed visuals, while the 5-wire resistive touchscreen allows for easy navigation and interaction with the device's software interface. The display and touchscreen are both built to withstand harsh conditions and maintain reliable performance even under challenging environments.
Rich external I/Os provide connectivity options, allowing users to connect a range of input/output devices and peripherals including USB, Ethernet, HDMI, VGA, and more, depending on the specific customization requirements.
IESP-5219-XXXXU is compatible with both rack mount and VESA mount systems, making it easy to integrate into existing setups. Additionally, the product offers deep custom design services, which means that users can request configuration options specific to their needs such as internal hardware, external ports.
This industrial panel PC also comes with a 5-year warranty, providing peace of mind over its prolonged use and ensuring high-quality technical support and maintenance.
Dimension
| IESP-5219-8145U | ||
| 19-inch Fanless Industrial Panel PC | ||
| SPECIFICATION | ||
| System Configuration | CPU | Onboard Intel® Core™ i3-8145U Processor 4M Cache, up to 3.90 GHz |
| CPU Options | Support 5/6/8/10/11th Core i3/i5/i7 Mobile Processor | |
| Integrated Graphics | Intel UHD Graphics | |
| Memory | 4/8/16/32/64GB DDR4 RAM | |
| System Audio | Realtek HD Audio | |
| System Storage | 128GB/256GB/512GB SSD | |
| WLAN | WIFI Module optional | |
| WWAN | 3G/4G/5G Module optional | |
| OS Supported | Windows10/Windows11; Ubuntu16.04.7/18.04.5/20.04.3 | |
| Display | LCD Size | 19″ Sharp/AUO TFT LCD, Industrial Grade |
| LCD Resolution | 1280*1024 | |
| Viewing Angle(L/R/U/D) | 85/85/80/80 | |
| Number of Colors | 16.7M | |
| Brightness | 300 cd/m2 (High Brightness Optional) | |
| Contrast Ratio | 1000:1 | |
| Touchscreen | Type | Industrial Grade 5-Wire Resistive Touchscreen |
| Light Transmission | Over 80% | |
| Controller | Industrial Grade EETI USB Touchscreen Controller | |
| Life Time | Over 35 million times | |
| Cooling System | Cooling Mode | Fan-less Design, Cooling By Aluminum Fins Of Rear Cover |
| External I/Os | Power Interface | 1*2PIN Phoenix Terminal DC IN |
| Power Button | 1*Power Button | |
| USB Ports | 4*USB 3.0 | |
| HDMI &VGA | 1*HDMI, 1*VGA | |
| Ethernet | 1*RJ45 GLAN (2*RJ45 GbE LAN Optional) | |
| HD Audio | 1*Audio Line-Out & MIC-IN, 3.5mm Standard Interface | |
| COM Ports | 4*RS232 (6*RS232/RS485Optional) | |
| Power | Power Requirement | 12V DC IN (9~36V DC IN, ITPS Power Module optional) |
| Power Adapter | Huntkey 84W Power Adapter | |
| Power Input: 100 ~ 250VAC, 50/60Hz | ||
| Power Output: 12V @ 7A | ||
| Physical Characteristics | Front Bezel | 6mm Aluminum Panel, IP65 Protected |
| Chassis | 1.2mm SECC Sheet Metal | |
| Mounting Solution | Panel Mount & VESA Mount(100*100) | |
| Chassis Color | Black (Other Color optional) | |
| Dimensions | W482 x H396 x D60.5mm | |
| Environment | Temperature | 10°C~60°C |
| Relative Humidity | 5% – 90% relative humidity, non-condensing | |
| Stability | Vibration protection | IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Impact protection | IEC 60068-2-27, half sine wave, duration 11ms | |
| Authentication | With FCC, CCC | |
| Others | Warranty | 3-Year (Free for 1-year, Cost price for last 2-year) |
| Speakers | 2*3W Speaker optional | |
| OEM/ODM | Support Full Custom Design | |
| ACC Ignition | ITPS Power Module optional | |
| Packing List | 19 inch Industrial Panel PC, Mounting Kits, Power Adapter, Power Cable | |
