19″ LCD 9U Rack Mount Industrial Monitor

19″ LCD 9U Rack Mount Industrial Monitor

Key Features:

• Customized 9U Rack Mount Industrial Monitor

• 19″ 1280*1024 Industrial Grade TFT LCD

• 5-Wire Resistive Touchscreen(Protective Glass optional)

• Support VGA & DVI Display Input (HDMI optional)

• 5-key OSD Keyboard

• OEM/ODM Supported

• With 5-year Warranty


Overview

Specifications

Product Tags

The IESP-72XX Rack Mount Display Series is a versatile and robust solution specifically designed for use in demanding industrial environments. The series boasts a sleek black aluminum rack mount bezel that enhances the look and feel of industrial settings. With several touchscreen options, including resistive touch and protective glass, it caters to a broad range of industrial applications. Resistive touchscreens provide precise control and accuracy, while protective glass shields against scratches, impacts and other damage.

The Rack Display Series' versatility is evident in its ability to facilitate easy rack mounting of flat-screen monitors to server racks, cabinets, room controls, security monitoring, and similar industrial solutions. This makes it an ideal display solution for factories, warehouses, and similar settings where traditional mounting options may not suffice.

Built to withstand harsh environmental conditions, the black aluminum rack mount bezel and optional chrome handles are durable and dependable. The touchscreens also guarantee reliability and longevity over time. The series is user-friendly and conceptually straightforward to install and use, programmed with intuitive controls and interfaces.

Overall, the IESP-72XX Rack Mount Display Series offers advanced features and capabilities to enhance efficiency, productivity, and safety, all while reducing costs. Whether you need a display solution for server racks, cabinets, room controls, or security monitoring, the Rack Display Series is a trustworthy, practical choice.

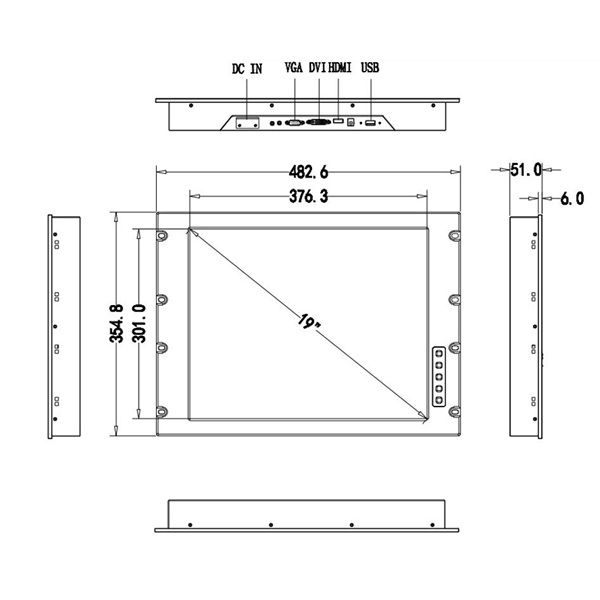

Dimension

PWS-867-2
PWS-867-3

  • Previous:
  • Next:

  • IESP-7219-VD-R
    9U Rack Mount Industrial LCD Monitor
    DATASHEET
    LCD Screen Size 19-inch Industrial Grade TFT LCD
    Resolution 1280*1024
    Display Ratio 4:3
    Contrast Ratio 1500:1
    Nits 470(cd/m²)  (1000cd/m2 High Brightness optional)
    Viewing Angle 85/85/85/85
    Backlight LEDBacklight, life time≥50000hours
    Colors 16.7M

    Touchscreen Type 5-wire Resistive Touchscreen   (Protective Glass optional)
    Light Transmission Over 80%
    Life Time ≥ 35 million times

    Rear I/Os Display Inputs 1 x  VGA, 1 x DVI,(1  x HDMI optional)
    Touchscreen Interface 1 x USB For Touchscreen optional
    Audio 1 x Audio IN for VGA optional
    DC-IN 1 x 2PIN Phoenix Terminal Block DC IN

    OSD OSD-Keyboard 5 Keys (ON/OFF, EXIT, UP, DOWN, MENU)
    Multi-Language Support Chinese, English, German, French, Korean, Spanish, Italian, Russian
    Deep Dimming Support 1% ~ 100% Deep Dimming

    Enclosure Front Bezel Aluminum Panel, IP65 Rated
    Material Aluminum Panel+ SECC Chassis
    Mounting Solution Rack Mount
    Enclosure Color Black
    Size 482.6mm x 396mm x 50.3mm

    Power Adapter Power Supply “Huntkey” 48W Power Adapter, 12V@4A
    Power Input AC 100-240V 50/60Hz, merting with CCC, CE Certification
    Output DC12V / 4A

    Working Environment Tempe. -10°C~60°C    (-30°C~80°C optional)
    Humidity 5% – 90% relative humidity, non-condensing

    Others Product Warranty 5-Year
    Booting Logo optional
    Customization Acceptable
    HDMI/AV-in/EDP optional
    Speakers optional
    Packing List 19 inch Rack Mount Industrial LCD Monitor, VGA Cable, Power Adapter, Power Cable
