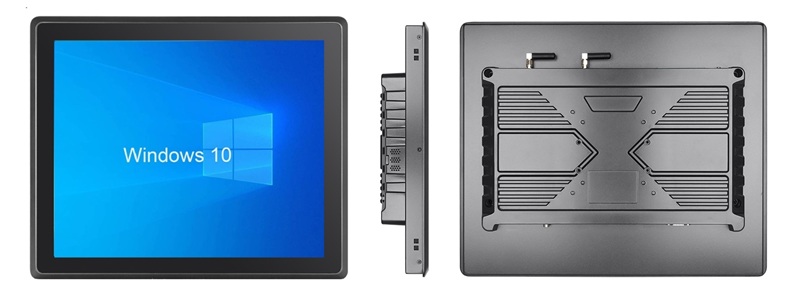

17″ Fanless Industrial Panel PC – With 6/8/10th Core I3/I5/I7 U Series Processor
The IESP-5617 Industrial Panel PC is a reliable and high-performing solution designed for industrial applications. With an edge-to-edge truly flat front surface that is easy to clean, and an IP65 rating providing excellent protection against dust and water, it is ideal for use in rugged environments.
Equipped with a powerful processor, touch screen capabilities, and a high-resolution display, this fanless panel PC delivers seamless operation and optimal performance in industrial applications such as control systems, automation, and manufacturing.
Built to last, the IESP-5617 feature a rugged and durable construction ensuring it can withstand the rigors of daily use. It is also easy to install and maintain, making it a cost-effective choice for industrial applications.
This industrial panel PC comes in various sizes and configurations to meet unique application requirements. Flexible installation options, including VESA and panel mount, allow for customizable installations tailored to specific needs.
With its edge-to-edge design, easy-to-clean front surface, and IP65 protection, the IESP-5617 Rugged Panel PC HMI provides superior functionality and durability. Contact us today to learn more about this exceptional product.
Dimension
Ordering Information
IESP-5617-J1900-C: Intel® Celeron® Processor J1900 2M Cache, up to 2.42 GHz
IESP-5617-6100U-C: Intel® Core™ i3-6100U Processor 3M Cache, 2.30 GHz
IESP-5617-6200U-C: Intel® Core™ i5-6200U Processor 3M Cache, up to 2.80 GHz
IESP-5617-6500U-C: Intel® Core™ i7-6500U Processor 4M Cache, up to 3.10 GHz
IESP-5617-8145U-C: Intel® Core™ i3-8145U Processor 4M Cache, up to 3.90 GHz
IESP-5617-8265U-C: Intel® Core™ i5-8265U Processor 6M Cache, up to 3.90 GHz
IESP-5617-8565U-C: Intel® Core™ i7-8565U Processor 8M Cache, up to 4.60 GHz
IESP-5617-10110U-C: Intel® Core™ i3-10110U Processor 4M Cache, up to 4.10 GHz
IESP-5617-10120U-C: Intel® Core™ i5-10210U Processor 6M Cache, up to 4.20 GHz
IESP-5617-10510U-C: Intel® Core™ i7-10510U Processor 8M Cache, up to 4.90 GHz
| IESP-5617-10110U | ||
| 17-inch Industrial Fanless Panel PC | ||
| SPECIFICATION | ||
| Hardware Configuration | Processor | Onboard Intel 10th Core i3-10110U Processor 4M Cache, up to 4.10GHz |
| Processor Options | Support Intel 6/8/10th Generation Core i3/i5/i7 U-series Processor | |
| Integrated Graphics | Intel HD Graphic 620 | |
| Memory | 4G DDR4 (8G/16G/32GB Optional) | |
| Audio | Realtek HD Audio | |
| SSD | 128GB SSD (256/512GB Optional) | |
| WLAN | WIFI & BT Optional | |
| WWAN | 3G/4G Module Optional | |
| Supported System | Windows7/10/11; Ubuntu16.04.7/18.04.5/20.04.3; Centos7.6/7.8 | |
| LCD Display | LCD Size | 17″ TFT LCD |
| Resolution | 1280*1024 | |
| Viewing Angle | 85/85/80/70 (L/R/U/D) | |
| Number of Colors | 16.7M Colors | |
| Brightness | 300 cd/m2 (High Brightness Optional) | |
| Contrast Ratio | 1000:1 | |
| Touchscreen | Type | P-Cap Touchscreen (Resistive Touchscreen, Protective Glass optional) |
| Light Transmission | Over 90% (P-Cap) | |
| Controller | With USB Communication Interface | |
| Life Time | Over 50 million times | |
| I/Os | Power Interface 1 | 1 * 12PIN Phoenix Terminal Block |
| Power Interface 2 | 1 * DC2.5 | |
| Power Button | 1 * Power Button | |
| USB Ports | 2 * USB 2.0，2 * USB 3.0 | |
| HDMI | 1 * HDMI, supporting HDMI data output, up to 4k | |
| VGA | 1 * VGA Display Output | |
| SMI Card | 1 * Standard SIM Card Interface (support 3G/4G Module) | |
| Ethernet | 2 * GLAN, Dual 1000M Adaptive Ethernet | |
| Audio | 1 * Audio Out, 3.5mm standard interface | |
| COM (RS232/485) | 2 * RS232 (Max up to 6*COM) | |
| Power | Input Voltage | 12V~36V DC IN |
| Physical Characteristics | Front Bezel | Aluminum Panel, IP65 Rated |
| Chassis | Aluminum Alloy, Fanless Design | |
| Mounting Solution | Panel Mount, VESA Mount | |
| Chassis Color | Black | |
| Dimensions | W399.2x H331.6x D64.5 (mm) | |
| Size of Opening | W385.3 x H323.4 (mm) | |
| Working Enviroment | Temp. | -10°C~60°C |
| Humidity | 5% – 90% relative humidity, non-condensing | |
| Stability | Vibration protection | IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Impact protection | IEC 60068-2-27, half sine wave, duration 11ms | |
| Authentication | EMC/CB/ROHS/CCC/CE/FCC/ | |
| Others | Warranty | 3-Year (Free for 1-year, Cost price for last 2-year) |
| Speaker | optional | |
| ODM/OEM | optional | |
| Packing List | 17-Iinch Fanless Industrial Panel PC, Mounting Kits, Power Adapter, Power Cable | |
