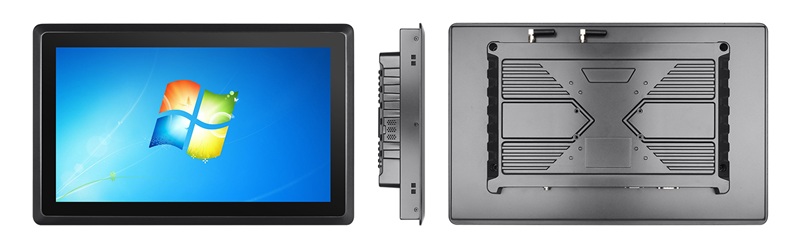

17.3″ Fanless Industrial Panel PC – With 6/8/10th Core I3/I5/I7 U Series Processor
The IESP-5617 Industrial Fanless Panel PC is a high-performing and reliable solution designed for industrial applications. It features a 17.3" 1920*1080 TFT LCD touchscreen with 10-point P-CAP technology protected by a full flat front panel and an IP65 rating, delivering superior protection against water and dust for harsh environments.
Powered by onboard Intel 6/8/10th Core i3/i5/i7 processors (U Series, 15W), this industrial panel PC HMI supports multiple display outputs such as VGA and HDMI. It also comes with rich I/Os including 2 GbE LAN ports, 2/4 COM ports, 4 USB ports, 1 HDMI, and 1 VGA, providing excellent connectivity options bespoke to the client's requirements.
This panel PC HMI is housed in a fanless, ultra-slim and durable aluminum chassis, ensuring it can withstand the daily usage of industrial applications. Additionally, its 12-36V wide power input range makes it easy to connect to various applications' power sources.
IESPTECH also provides custom design services, allowing customers to tailor this product to their unique application needs. Overall, IESP-5617 is an exceptional solution that offers advanced capabilities, rugged durability, and superior protection. Contact us today to learn more about this outstanding product.
Dimension
Ordering Information
IESP-5617-J1900-C-W: Intel® Celeron® Processor J1900 2M Cache, up to 2.42 GHz
IESP-5617-6100U-C-W: Intel® Core™ i3-6100U Processor 3M Cache, 2.30 GHz
IESP-5617-6200U-C-W: Intel® Core™ i5-6200U Processor 3M Cache, up to 2.80 GHz
IESP-5617-6500U-C-W: Intel® Core™ i7-6500U Processor 4M Cache, up to 3.10 GHz
IESP-5617-8145U-C-W: Intel® Core™ i3-8145U Processor 4M Cache, up to 3.90 GHz
IESP-5617-8265U-C-W: Intel® Core™ i5-8265U Processor 6M Cache, up to 3.90 GHz
IESP-5617-8565U-C-W: Intel® Core™ i7-8565U Processor 8M Cache, up to 4.60 GHz
IESP-5617-10110U-C-W: Intel® Core™ i3-8145U Processor 4M Cache, up to 4.10 GHz
IESP-5617-10120U-C-W: Intel® Core™ i5-10210U Processor 6M Cache, up to 4.20 GHz
IESP-5617-10510U-C-W: Intel® Core™ i7-10510U Processor 8M Cache, up to 4.90 GHz
| IESP-5617-10110U-W | ||
| 17.3-inch Industrial Fanless Panel PC | ||
| SPECIFICATION | ||
| Hardware Configuration | Processor | Onboard Intel 10th Core i5-10210U Processor 6M Cache, up to 4.20GHz |
| Processor Options | Support Intel 6/8/10th Generation Core i3/i5/i7 U-series Processor | |
| Graphics | Intel HD Graphic 620 | |
| RAM | 4GB/8GB/16GB/32GB DDR4 RAM | |
| Audio | Realtek HD Audio | |
| Storage | 128GB SSD (256/512GB Optional) | |
| WLAN | WIFI & BT Optional | |
| WWAN | 3G/4G Module Optional | |
| Supported OS | Ubuntu16.04.7/18.04.5/20.04.3; Windows7/10/11 | |
| Display | LCD Size | 17.3″ Industrial TFT LCD |
| LCD Resolution | 1920*1080 | |
| Viewing Angle | 80/80/60/80 (L/R/U/D) | |
| Number of Colors | 16.7M Colors | |
| LCD Brightness | 300 cd/m2 (1000 cd/m2 High Brightness Optional) | |
| Contrast Ratio | 600:1 | |
| Touchscreen | Type | Capacitive Touchscreen (Resistive Touchscreen optional) |
| Light Transmission | Over 90% (P-Cap) | |
| Controller | With USB Communication Interface | |
| Life Time | ≥ 50 million times | |
| External I/Os | Power-In 1 | 1 x 12-PIN Phoenix Terminal Block |
| Power-In 2 | 1 x DC2.5 | |
| Power Button | 1 x Power Button | |
| USB Ports | 2 x USB 2.0，2 x USB 3.0 | |
| Displays | 1 x HDMI, 1 x VGA | |
| SMI Card | 1 x Standard SIM Card Interface | |
| GLAN | 2 x GLAN, Dual 1000M Adaptive Ethernet | |
| Audio | 1 x Audio Out, 3.5mm standard interface | |
| COM | 2 x RS232 (Max up to 6*COM) | |
| Cooling | Thermal Solution | Passive heat dissipation – Fanless Designed |
| Physical Characteristics | Front Bezel | Pure Flat, IP65 Protected |
| Chassis Material | Aluminum Alloy Material | |
| Mounting | Support Panel Mount, VESA Mount(100*100, 75*75) | |
| Chassis Color | Black | |
| Dimensions | W452x H285x D70.5 (mm) | |
| Cut Out | W436.8 x H269.8 (mm) | |
| Working Environment | Temperature | -10°C~60°C |
| Humidity | 5% – 90% relative humidity, non-condensing | |
| Stability | Vibration protection | IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Impact protection | IEC 60068-2-27, half sine wave, duration 11ms | |
| Authentication | CCC/CE/FCC/EMC/CB/ROHS | |
| Others | Product Warranty | 3-Year (Free for 1-year, Cost price for last 2-year) |
| Speakers | optional (2*3W internal speaker) | |
| Customization | Acceptable | |
| Packing List | 17.3-inch Fanless Industrial Panel PC, Mounting Kits, Power Adapter, Power Cable | |
| IESP-5617-W Fanless Panel PC Customization Options | |||||||
| Mounting | Panel Mount / VESA Mount / Customized Mount | ||||||
| LCD | Size / Brightness / Viewing Angle / Contrast Ratio / Resolution | ||||||
| Touch Screen | Resistive Touchscreen / P-cap Touchscren / Protective Glass | ||||||
| Processor | Onboard 6th/8th/10th Gen. Core i3/i5/i7 Processor | ||||||
| DDR4 RAM | 4GB / 8GB / 16GB / 32GB DDR4 RAM | ||||||
| SSD Storage | mSATA SSD / M.2 NVME SSD | ||||||
| COM | Max up to 6*COM | ||||||
| USB | Max up to 4*USB2.0, Max up to 4*USB3.0 | ||||||
| GPIO | 8*GPIO (4*DI, 4*DO) | ||||||
| LOGO | Customized Boot-up LOGO | ||||||
