17.3″ LCD 7U Rack Mount Industrial Display
IESP-7217-V59-W-R is a Customized 7U Rack Mount Industrial Monitor that features a 17.3-inch industrial-grade TFT LCD display with a resolution of 1920 x 1080 pixels. The device comes with a durable 5-wire resistive touchscreen for exceptional durability and ease of use in harsh industrial environments.
The customized monitor IESP-7217-V59-W-R supports VGA & DVI display inputs. It also includes a 5-key OSD Keyboard, with deep dimming capabilities for optimal viewing experience in all lighting conditions.
The industrial monitor can be mounted on a rack or VESA mount to suit specific installation needs. Also, the package provides deep custom design services enabling users to select features and configuration that meet their unique requirements.
Furthermore, this industrial monitor comes with a five-year warranty, assuring customers of its longevity and reliability.
Overall, the customized 7U Rack Mount Industrial Monitor is ideal for use in demanding industrial environments where exceptional durability, versatility and optimized functionality are essential. It is suitable for applications such as automation, manufacturing, and transportation requiring a high level of performance and dependable operation.

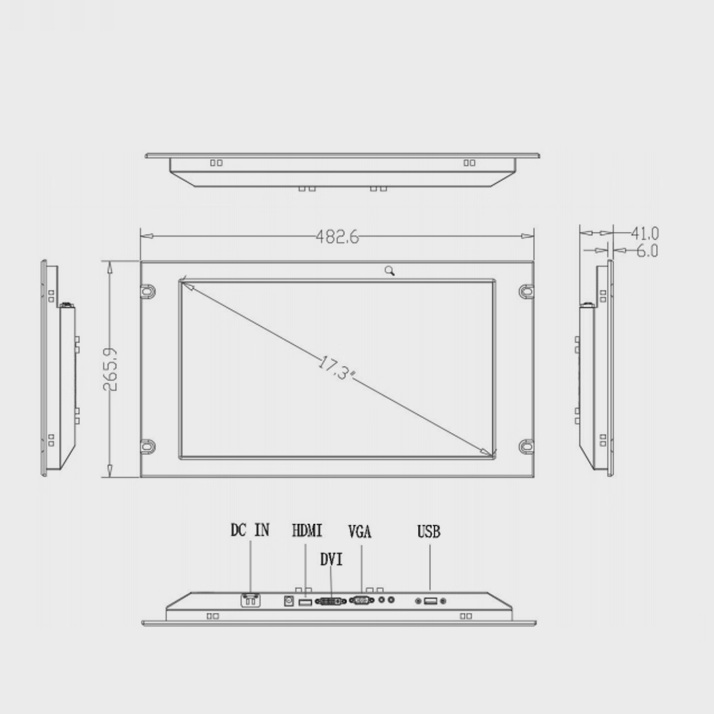

Dimension
| IESP-7217-V59-W-G/R | ||
| 7U Rack Mount Industrial LCD Monitor | ||
| SPECIFICATION | ||
| Display | Screen Size | AUO 17.3-inch TFT LCD, Industrial Grade |
| Resolution | 1920*1080 | |
| Display Ratio | 16:9 | |
| Contrast Ratio | 600:1 | |
| Brightness | 400(cd/m²) (Sunlight Readable optional) | |
| Viewing Angle | 80/80/60/80 | |
| Backlight | LED, life time≥50000 hours | |
| Number of Colors | 16.7M | |
| Touchscreen | Touchscreen Type | Industrial 5-wire Resistive Touchscreen (Protective Glass optional) |
| Light Transmission | Over 80% (Resistive Touchscreen) | |
| Life Time | ≥ 35 million times (Resistive Touchscreen) | |
| I/O | Display-Input | 1 * DVI, 1 * VGA (HDMI/AV input optional) |
| Touchscreen Interface | 1 * USB For Touchscreen optional | |
| Audio | 1 * Audio IN for VGA | |
| DC-in | 1 * 2PIN Phoenix Terminal Block DC IN | |
| OSD | OSD-Keyboard | 5 Keys (ON/OFF, EXIT, UP, DOWN, MENU) |
| Languages | Russian, Chinese, English, German, French, Korean, Spanish, Italian | |
| Deep Dimming | optional (1% ~ 100% Deep Dimming ) | |
| Chassis | Front Bezel | Meeting with IP65 |
| Material | Aluminum Panel+ SECC Chassis | |
| Mounting Way | Rack Mount ( VESA Mount, Panel Mount Optional) | |
| Color | Black | |
| Dimensions | 482.6mm x 310mm x 50.3mm | |
| Power Adapter | Power Supply | “Huntkey” 48W Power Adapter, 12V@4A |
| Power Input | AC 100-240V 50/60Hz, merting with CCC, CE Certification | |
| Output | DC12V / 4A | |
| Stability | Anti-static | Contact 4KV-air 8KV (can be customized ≥16KV) |
| Anti-vibration | GB2423 Standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Working Environment | Temp. | -10°C~60°C |
| Humidity | 5% – 90% relative humidity, non-condensing | |
| Others | Warranty | 5-Year |
| Customization | Acceptable | |
| HDMI/AV | AV IN optional | |
| Speaker | optional | |
| Packing List | 17.3 inch Rack Mount Industrial LCD Monitor, VGA Cable, Power Adapter, Power Cable | |
