Since 2012 | Provide customized industrial computers for global clients!
Products-1

15″ LCD 7U Rack Mount Industrial Monitor

15″ LCD 7U Rack Mount Industrial Monitor

Key Features:

• Customized 7U Rack Mount Industrial Monitor

• 15″ 1024*768 Industrial Grade TFT LCD

• 5-Wire Resistive Touchscreen or Rugged Glass

• Support VGA & DVI Display Input

• 5-key OSD Keyboard, support deep dimming

• Support Rack Mount & VESA Mount

• Provide Deep Custom Design Services

• Under 5-year Warranty


Overview

Specifications

Product Tags

IESP-72XX Rack Mount Display Series is a powerful and versatile solution that is specifically designed for use in industrial applications. The series features a black aluminum rack mount bezel, providing a sleek and stylish look that is perfect for industrial environments. (Chrome handles are aptional)

The Rack Display Series features a full range of touchscreens, including resistive touch and protective glass, that are ideal for use in a wide range of industrial settings. The resistive touchscreens are perfect for applications that require precise control and accuracy, while the protective glass is ideal for applications that require protection against scratches, impacts, and other types of damage.

One of the key benefits of IESP-72XX Rack Mount Display Series is its versatility. The design of the series allows you to easily rack mount flat-screen monitors to server racks, cabinets, room controls, security monitoring, and other industrial solutions. This makes it an ideal solution for use in a wide range of industrial applications, including factories, warehouses, and other settings where traditional mounting solutions may not be available.

The Rack Display Series is also built to last. The black aluminum rack mount bezel is designed to withstand the harsh conditions commonly found in industrial environments, while the touchscreens are built to be durable and reliable. Additionally, the series is designed to be easy to install and use, with intuitive controls and user-friendly interfaces.

IESP-72XX Rack Mount Display Series is a powerful and versatile solution that is ideal for use in a wide range of industrial applications. With its advanced features and capabilities, it is an ideal solution for improving efficiency and productivity while reducing costs and improving safety. Whether you need a display solution for server racks, cabinets, room controls, or security monitoring, the Rack Display Series is a reliable and durable choice.

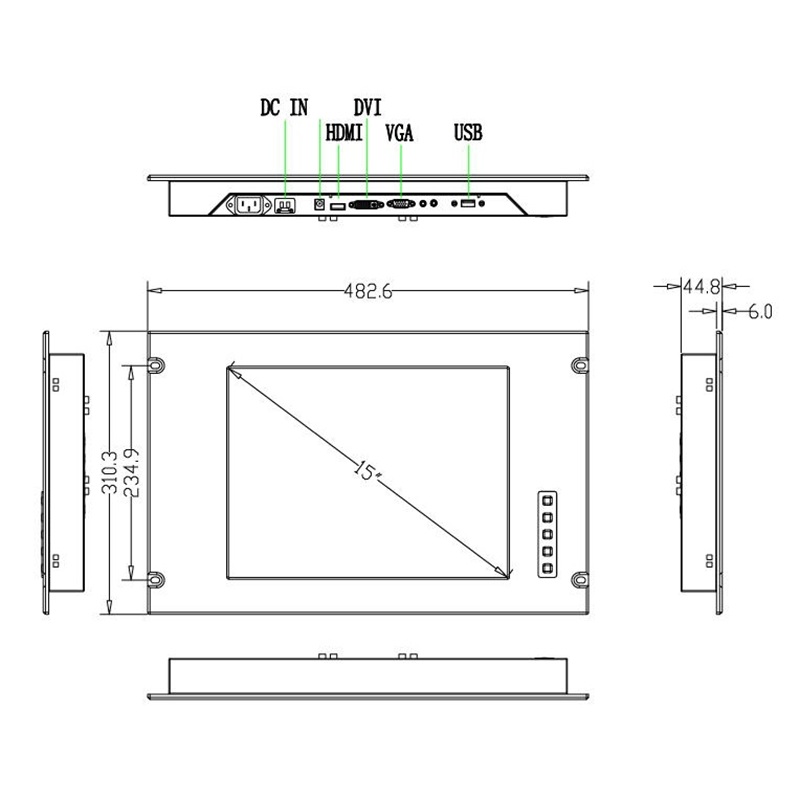

Dimension

IESP-7215-2
IESP-7215-3

  • Previous:
  • Next:

  • IESP-7215-V59-G/R
    7U Rack Mount Industrial LCD Monitor
    SPECIFICATION
    Display Screen Size AUO 15-inch TFT LCD, Industrial Grade
    Resolution 1024*768
    Display Ratio 4:3
    Contrast Ratio 1500:1
    Nits 400(cd/m²)  (1000cd/m2 High Brightness LCD optional)
    Viewing Angle 88/88/88/88 (L/R/U/D)
    Backlight LED, life time≥50000h
    Number of Colors 16.2M Colorrs

    Touchscreen Type 5-wire Resistive Touchscreen (Protective Glass optional)
    Light Transmission Over 80% (Resistive Touchscreen)
    Life Time ≥ 35 million times (Resistive Touchscreen)

    I/O HDMI 1 * HDMI optional
    VGA 1 * VGA
    DVI 1 * DVI
    Touchscreen Interface 1 * USB For Touchscreen optional
    Audio 1 * Audio IN for VGA optional
    DC 1 * DC IN (Support 12V DC IN)

    OSD Keyboard 5 Keys (ON/OFF, EXIT, UP, DOWN, MENU)
    Language Chinese, English, German, French, Korean, Spanish, Italian, Russian
    Deep Dimming 1% ~ 100% Deep Dimming optional

    Enclosure Front Bezel IP65 Protected
    Material Aluminum Panel+ SECC Chassis
    Mounting Rack Mount, Panel Mount, VESA Mount
    Color Black (Provide custom design services)
    Dimensions 482.6mm x 311mm x 48.7mm

    Power Adapter Power Supply “MEAN WELL” 40W Power Adapter, 12V@3.34A
    Power Input AC 100-240V 50/60Hz, merting with CCC, CE Certification
    Output DC12V / 3.34A

    Stability Anti-static Contact 4KV-air 8KV (can be customized ≥16KV)
    Anti-vibration GB2423 Standard
    Anti-interference EMC|EMI anti-electromagnetic interference

    Working Enviroment Temperature Working Temperature: -10°C~60°C
    Humidity 5% – 90% relative humidity, non-condensing

    Others Warranty 5-Year (Free for 2-year, Cost price for last 3-year)
    Boot Logo Customized Boot Logo
    Customization Acceptable
    AV 2*AV IN optional
    Speaker 2*3W Speaker optional
    Packing List Industrial LCD Monitor, VGA Cable, Power Adapter, Power Cable
