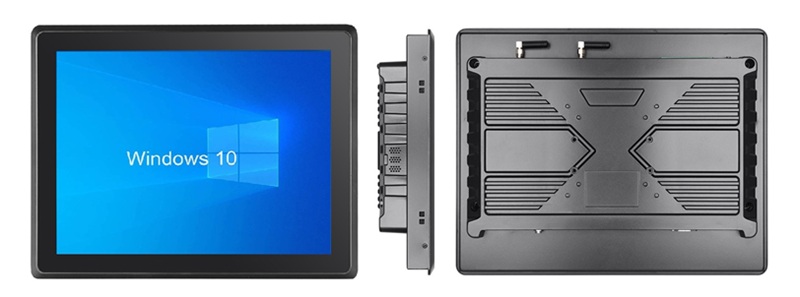

15″ Fanless Industrial Panel PC – With 6/8/10th Core I3/I5/I7 U Series Processor
IESP-5615 Standalone Panel PC HMI is a reliable and high-performing solution that offers a truly flat, easy-to-clean front surface with an edge-to-edge design. With an IP65 rating, it provides excellent protection against water and dust, making it ideal for use in harsh environments.
This standalone panel PC HMI is designed to deliver optimal performance in various industrial applications, such as manufacturing, automation, and control systems. It features a range of advanced features, including a high-resolution display, touch screen capabilities, and a powerful processor, all of which work together to ensure seamless operation.
IESP-5615 Standalone Panel PC HMI is built to last, with a rugged and durable construction that can withstand the rigors of daily use. It is also easy to install and maintain, making it a cost-effective solution for industrial applications.
Additionally, this panel PC HMI comes in a variety of sizes and configurations to meet the unique needs of your application. It also supports various mounting options, including VESA and panel mount, giving you the flexibility to install it in a way that best suits your needs. With its edge-to-edge design, easy-to-clean front surface, and IP65 protection, it offers superior functionality and durability. Contact to learn more about this outstanding product.
Dimension
Ordering Information
IESP-5615-J1900-C: Intel Celeron® Processor J1900 2M Cache, up to 2.42 GHz
IESP-5615-6100U-C: Intel Core™ i3-6100U Processor 3M Cache, 2.30 GHz
IESP-5615-6200U-C: Intel Core™ i5-6200U Processor 3M Cache, up to 2.80 GHz
IESP-5615-6500U-C: Intel Core™ i7-6500U Processor 4M Cache, up to 3.10 GHz
IESP-5615-8145U-C: Intel Core™ i3-8145U Processor 4M Cache, up to 3.90 GHz
IESP-5615-8265U-C: Intel Core™ i5-8265U Processor 6M Cache, up to 3.90 GHz
IESP-5415-8565U-C: Intel Core™ i7-8565U Processor 8M Cache, up to 4.60 GHz
IESP-5615-10110U-C: Intel Core™ i3-10110U Processor 4M Cache, up to 4.10 GHz
IESP-5615-10120U-C: Intel Core™ i5-10210U Processor 6M Cache, up to 4.20 GHz
IESP-5415-10510U-C: Intel Core™ i7-10510U Processor 8M Cache, up to 4.90 GHz
| IESP-5615-10110U | ||
| 15-inch Industrial Fanless Panel PC | ||
| SPECIFICATION | ||
| System | Intel Processor | Onboard Intel 10th Core i3-10110U Processor 4M Cache, up to 4.10GHz |
| Processor Options | Support Intel 6/8/10th Generation Core i3/i5/i7 U-series Processor | |
| HD Graphics | Intel HD Graphic 620 | |
| System RAM | 4G DDR4 (8G/16G/32GB Optional) | |
| Audio | Realtek HD Audio | |
| SSD | 128GB SSD (256/512GB Optional) | |
| WLAN | WIFI & BT Optional | |
| WWAN | 3G/4G Module Optional | |
| Operating System | Windows7/Windows10/Windows11; Ubuntu16.04.7/20.04.3 | |
| LCD Display | LCD Size | 15″ TFT LCD |
| Resolution | 1024*768 | |
| Viewing Angle | 89/89/89/89 (L/R/U/D) | |
| Number of Colors | 16.2M Colors | |
| Brightness | 300 cd/m2 (High Brightness Optional) | |
| Contrast Ratio | 1000:1 | |
| Touch Screen | Type | Projected Capacitive Touchscreen (Resistive Touchscreen Optional) |
| Light Transmission | Over 90% (P-Cap) | |
| Controller | With USB Communication Interface | |
| Life Time | ≥ 50 million times (P-cap) | |
| I/Os | Power Interface 1 | 1*12PIN Phoenix Terminal, Support 12V-36V Wide Voltage Power Supply |
| Power Interface 2 | 1*DC2.5, Support 12V-36V Wide Voltage Power Supply | |
| Power Button | 1*Power button | |
| USB | 2*USB 2.0，2*USB 3.0 | |
| HDMI | 1*HDMI, supporting HDMI data output, up to 4k | |
| SMI Card | 1*Standard SIM Card Interface | |
| LAN | 2*LAN, Dual 1000M adaptive Ethernet | |
| VGA | 1*VGA | |
| Audio | 1*Audio Out, 3.5mm standard interface | |
| COM | 2*RS232 (Max up to 6*COM) | |
| Power Supply | Input Voltage | 12V~36V DC IN |
| Physical Characteristics | Front Bezel | Full Flat, Meeting IP65 Rating |
| Material | Aluminum Alloy Material | |
| Mounting Solution | Support Panel Mount and VESA Mount | |
| Chassis Color | Black | |
| Dimensions(W*H*D) | 366.1x 290x 68 (mm) | |
| Cut Out (W*H) | 353.8 x 277.8 (mm) | |
| Environment | Working Temp. | -10°C~60°C |
| Working Humidity | 5% – 90% relative humidity, non-condensing | |
| Stability | Vibration protection | IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Impact protection | IEC 60068-2-27, half sine wave, duration 11ms | |
| Authentication | CCC/CE/FCC/EMC/CB/ROHS | |
| Others | Warranty | With 3-Year Warranty (Free for 1-year, Cost price for last 2-year) |
| Speaker | 2*3W Speaker optional | |
| Customization | Acceptable | |
| Packing List | Industrial Panel PC, Mounting Kits, Power Adapter, Power Cable | |
| IESP-5615 Fanless Panel PC Customization Options | |||||||
| Mounting | VESA Mount / Panel Mount / Customized Mount | ||||||
| LCD | Size / Brightness / Viewing Angle / Contrast Ratio / Resolution | ||||||
| Touchscreen | Protective Glass / Resistive Touchscreen / P-cap Touchscren | ||||||
| Intel Processor | 6th/8th/10th Generation Core i3/i5/i7 Processor | ||||||
| Memory | 4GB / 8GB / 16GB / 32GB DDR4 RAM | ||||||
| SSD | mSATA SSD / M.2 NVME SSD | ||||||
| COM Port | Max up to 6*COM | ||||||
| USB Port | Max up to 4*USB2.0, Max up to 4*USB3.0 | ||||||
| GPIO | 8*GPIO (4*DI, 4*DO) | ||||||
| LOGO | Customized Boot-up LOGO | ||||||
